Equipment Enclosures
Weather protection for pump systems, mechanical,
electrical, and industrial equipment
Critical Equipment Protection for Industrial Operations
Our equipment enclosures provide weather protection for valuable pumps, electrical systems,
and industrial equipment while maintaining necessary access for operation and maintenance.
These buildings protect equipment investments while ensuring operational reliability.
Data Centers
Data Centers
- Climate-controlled protection for backup power systems and cooling equipment
- Telecommunications equipment and protection of server infrastructure
- Cost-effective solution for modular expansion of overcrowded mechanical rooms
Municipalities and Public Works
Municipalities and Public Works
- Water and wastewater treatment equipment protection
- Electrical utility equipment and control panel housing
- Public works equipment and machinery protection
Pump Enclosures
Pump Enclosures
- Vertical turbine pumphouses with rooftop access hatches
- Domestic water booster pump enclosure
- Fuel delivery systems for emergency generators
Engineered for Maximum Protection and
Operational Effectiveness
Custom Design Process
Every equipment enclosure is different, with unique challenges and requirements. We customize enclosures to fit specific equipment dimensions, operational needs, and site constraints for optimal functionality.
Clearance for Maintenance
Most pump applications require clearance around
equipment for proper maintenance access. Our design process incorporates these operational requirements into enclosure layout and sizing.

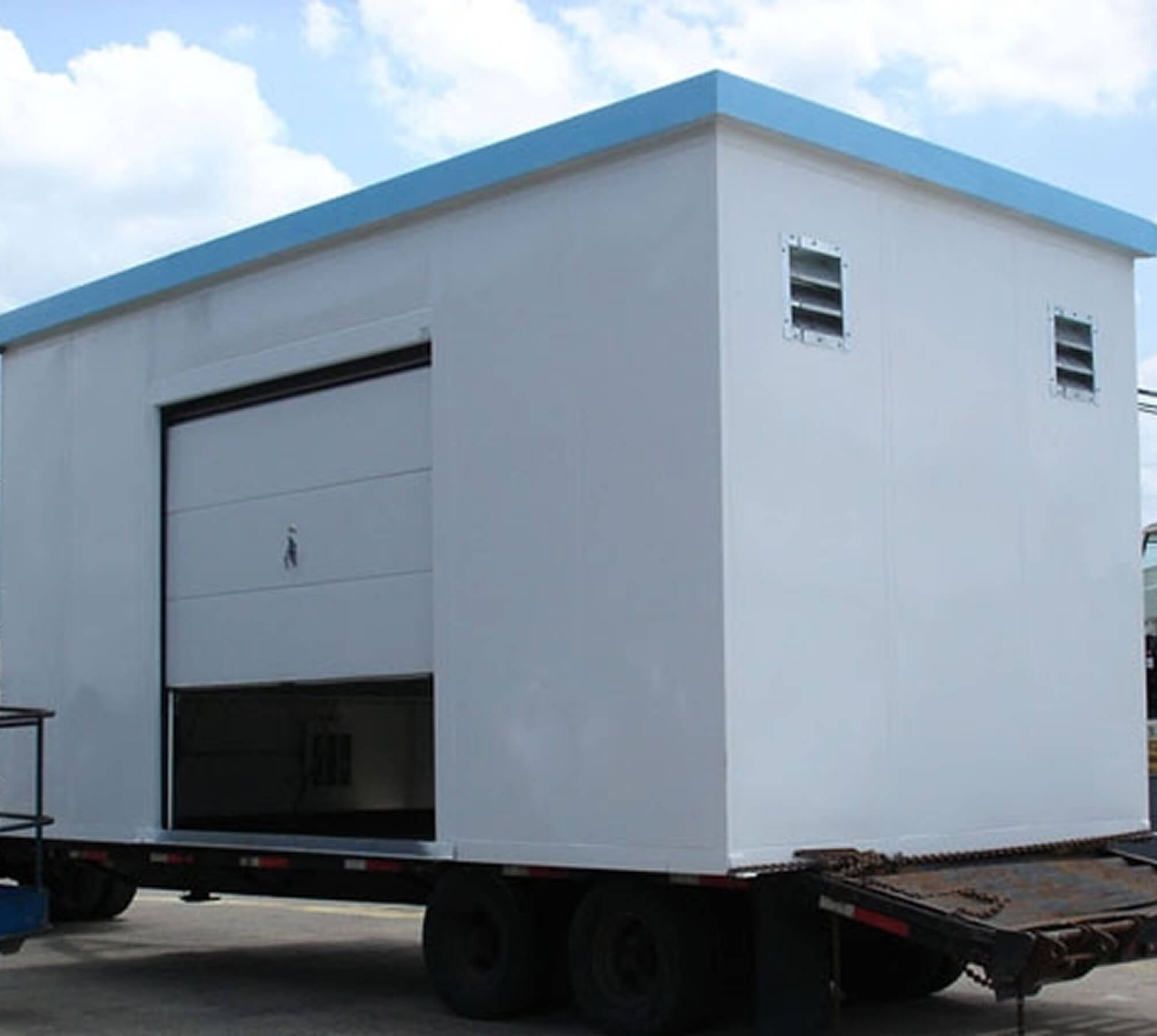

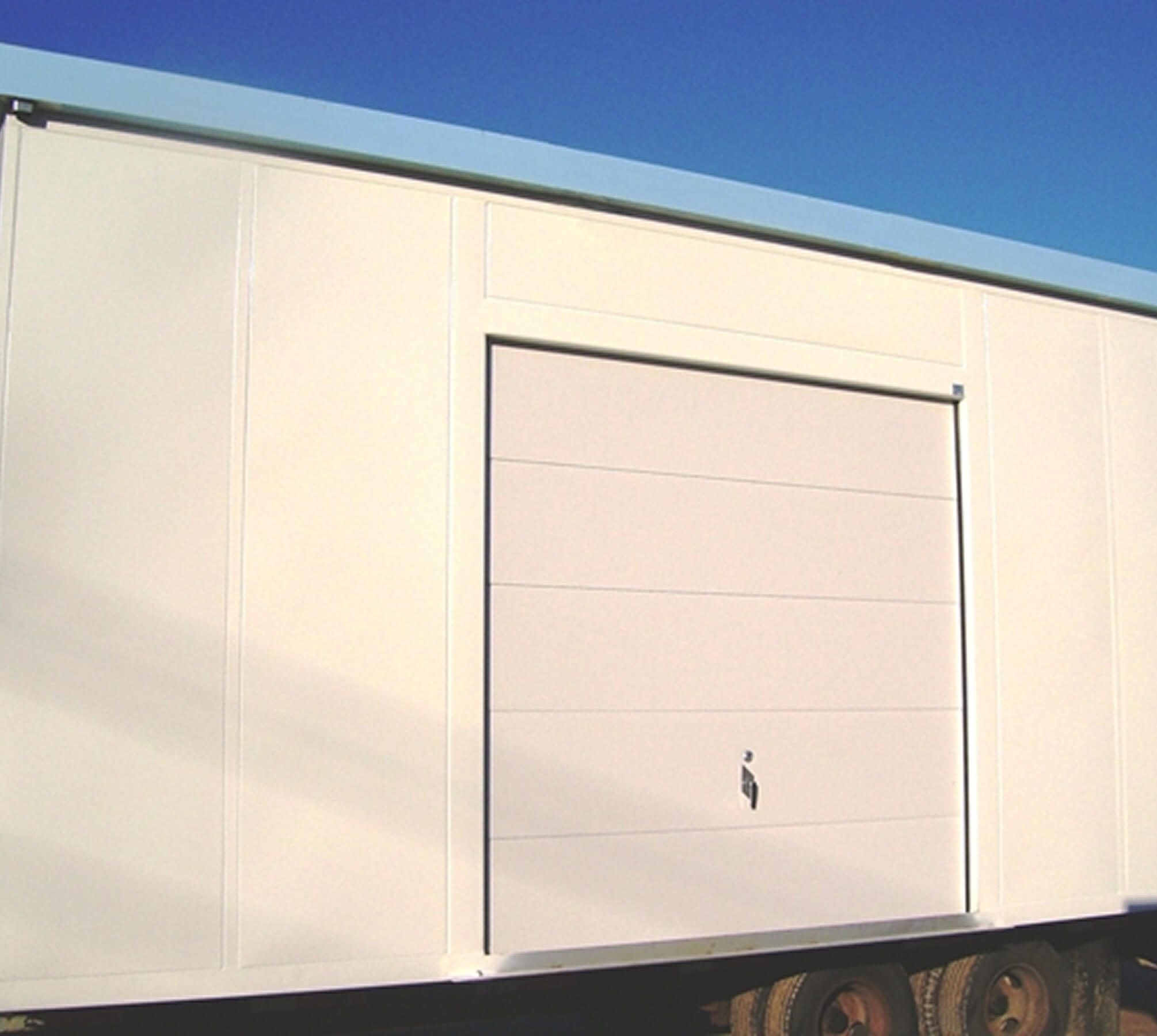

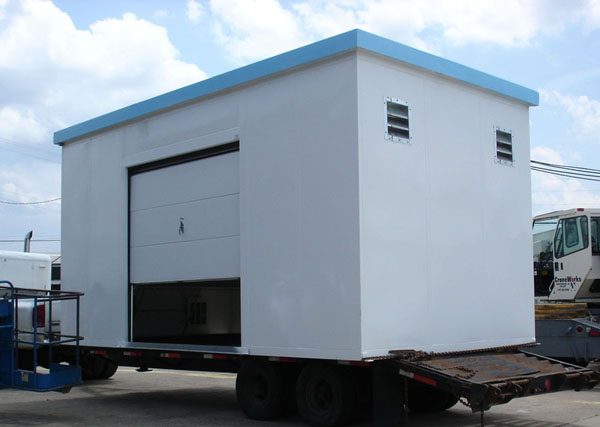

Door Configuration Options
Roll-up doors, double doors, and standard swing doors provide access for equipment maintenance and replacement. Door selection based
on equipment size, maintenance frequency, and operational requirements.
Roof Access Systems
Roof hatches are available for equipment requiring overhead rigging access for service, maintenance,
or replacement.
High-Temperature Ventilation
Exhaust fans with louvers and backdraft dampers provide proper ventilation for heat-generating equipment. HVAC systems and heaters are available for temperature-sensitive equipment applications.
Flooring
Systems
Standard floors, containment floor systems for petroleum and chemical applications, or cost effective floorless design.
Piping and Utility
Integration
Piping penetrations, electrical connections, and utility integration coordinated during design and engineering phase.
Foundation
Coordination
Designed for integration with customer-provided concrete foundations. Anchor bolt patterns and structural requirements specified in engineering drawings.
Security
Features
Locking mechanisms and security hardware protect valuable equipment from theft and unauthorized access.
Weather Resistance
Complete protection from rain, snow, wind, and UV exposure extends equipment life and reduces maintenance requirements. Proper drainage prevents water accumulation around sensitive equipment and electrical systems.
Insulation & Climate Control
Upgraded insulation for walls, ceiling, and floor systems available for temperature-sensitive equipment. HVAC systems provide climate control for optimal equipment performance and longevity.
Corrosion Protection
Material selection and coatings designed for harsh environmental conditions and industrial applications where corrosion resistance is critical for equipment protection.
Engineered for Equipment Protection
Size and Configuration Capabilities
Dimensional Limits

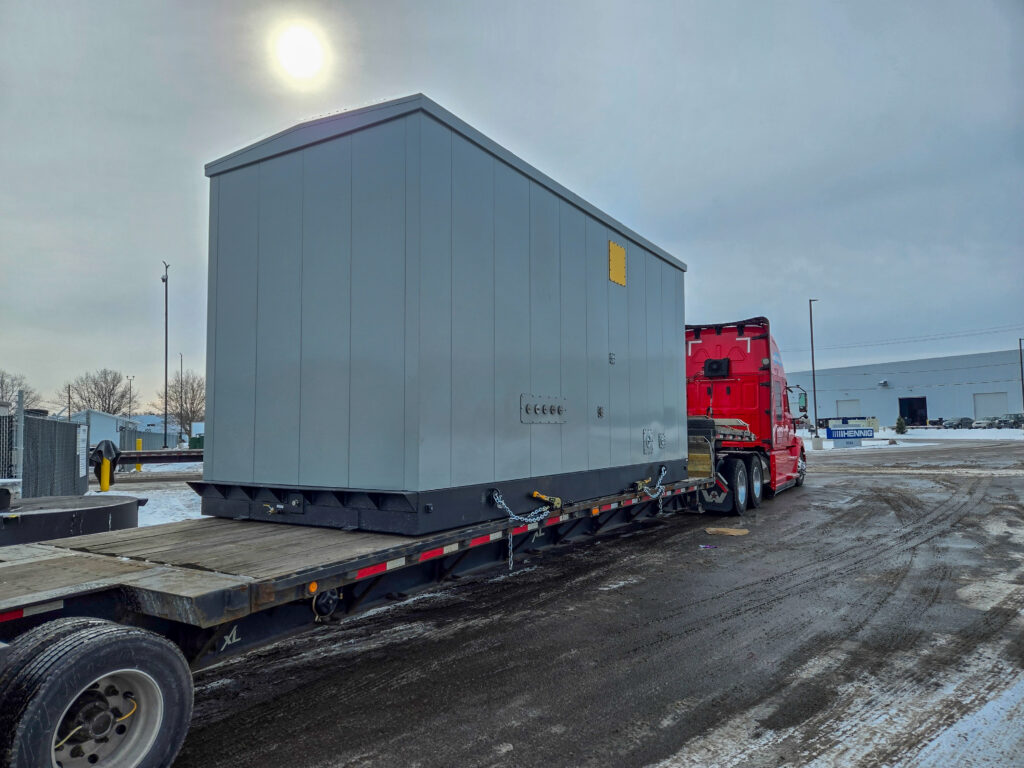

Equipment enclosures available up to 14′ width and approximately 50′ length with maximum overall height of 11’6″. These size constraints accommodate transportation requirements while providing substantial equipment protection capacity.
Custom Layout Design
Each enclosure configured for specific equipment types, utility connections, and maintenance access requirements. Layout optimization ensures efficient use of space while meeting operational and safety requirements.
Construction and Materials
Steel Construction
All-welded steel construction provides maximum durability and security for valuable equipment protection. Steel enclosures offer superior strength and impact resistance for demanding industrial environments and high-value installations.
Professional Finishes
LineX coating upgrade available for lower wall panels or entire building providing enhanced protection against rust, corrosion, and environmental damage. Particularly valuable in climates with salt exposure or corrosive conditions.
"*" indicates required fields
Ready to Protect Your Critical Equipment?
Learn more about custom equipment enclosures designed for your specific protection requirements and operational needs.
